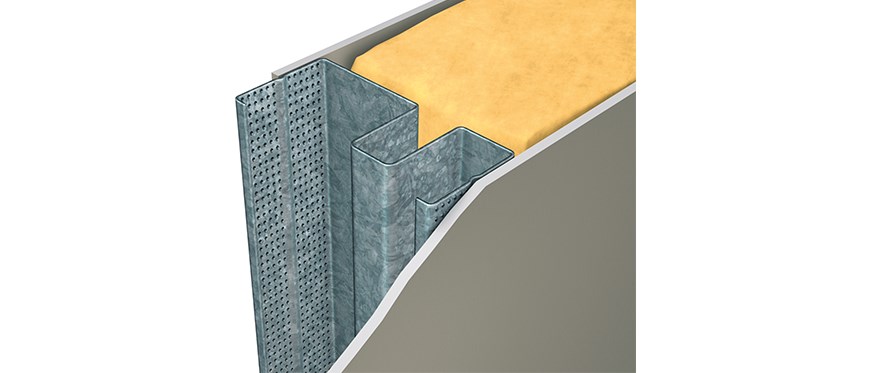

Rondo 0.55 Quiet Stud

Noise is actually vibration. A normal stud conducts the vibration across its web, and sound is transmitted via anything that reacts to it by vibrating. The Rondo QUIET STUD® is overall bigger in surface area than a standard wall stud. Therefore, the sound (vibration) has further to travel and tends to weaken in intensity across the wall, resulting in a more acoustic efficient wall system.

Its unique design, combined with appropriate lining board systems, forms an effective buffer against unwanted noise to provide a cost-effective solution to acoustic control provisions.

WHAT YOU'LL LIKE ABOUT OUR QUIET STUD® ACOUSTIC SYSTEM
You get more floor space, less noise and less installation costs with Rondo QUIET STUD®.

Fast and simple to install, its smaller footprint means more usable floor space. Not only that, the installation method is practically the same as standard drywall construction, so you’ll have lower installation costs and a virtually fail-safe acoustic wall-system.

WHAT IS QUIET STUD® SUITABLE FOR?
Acoustic control provisions
Acoustic wall system
Fire Rated and Non-fire rated Systems
Inter-tenancy walls (popular in apartments)
ADVANTAGES
Achieves superior performance in a smaller footprint, leaving more floor space
Quick installation as Contractor uses standard steel stud drywall installation practices, resulting in lower labour costs
Utilises standard Rondo 92mm top and bottom wall tracks
Standard 92mm wide stud system
Bell-mouthed service holes for electrical cabling
Studs feature a wider 45mm fixing flange
Studs are designed for a friction fit into top & bottom wall track



Name Description Size
quietstud_web.pdf QUIET STUD DESIGN 1.30 MB
RONDO STUD FRAMING SYSTEMS.pdf STUD FRAMING SYSTEMS 1.45 MB
DM_complete2018_rv121018.pdf RONDO DESIGN MANUAL 15.45 MB
walls_secured2018.pdf RONDO STUD AND TRACK DESIGN 12.71 MB
wlkabt_web.pdf RONDO WALKABOUT DESIGN 584 Kb
stud_ceilings_web.pdf RONDO STUD CEILING DESIGN 1.10 MB
